APC Smart-UPS 750VA/480W USB & Serial 230V (SUA750I)

Đơn giá (VND):

Liên hệ

Mã hàng: SUA750I

Thông tin nhanh về sản phẩm

SUA750I
APC Smart-UPS 750VA/500W USB & Serial 230V

THÔNG TIN THAY THẾ ẮC QUY CHO UPS (BATTERY REPLACEMENT)
Tên, số lượng bộ ắc quy lắp mặc định (Replacement battery cartridge)	RBC48 x 01
Bộ sạc & Tổ ắc quy lắp mặc định (UPS charger & Internal battery pack)	24VDC/ 56W =1x 2x 12Vx 7AH~9AH =168~216VAh capacity
Tủ ắc quy mở rộng (External extended battery cabinet)
Thời gian sạc lại cho khối ắc quy mặc định (Typical recharge time for internal battery pack)	3 giờ
Ắc quy khuyến nghị thay thế cho UPS (Recommend battery replacement)	WP7-12(28W) hoặc WP7.2-12, WPL7.2-12 hoặc WP1234W, WP1236W, WPL1235W

Sản phẩm tương tự

APC Smart UPS 5000VA/4000W, 230V Tower/ Rackmount 5U (SUA5000RMI5U)

APC Smart UPS 5000VA/4000W, 230V Tower/ Rackmount 5U (SUA5000RMI5U)

Đơn giá (VND): 6,500,000 ^{+ VAT}

Mã hàng: SUA5000RMI5U

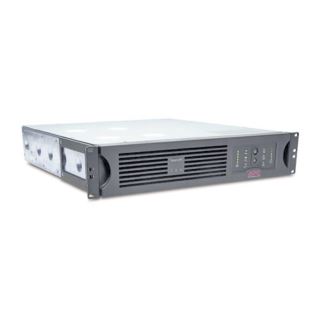

APC Smart-UPS 750VA/480W USB RM 2U 230V (SUA750RMI2U)

APC Smart-UPS 750VA/480W USB RM 2U 230V (SUA750RMI2U)

Đơn giá (VND): Liên hệ

Mã hàng: SUA750RMI2U

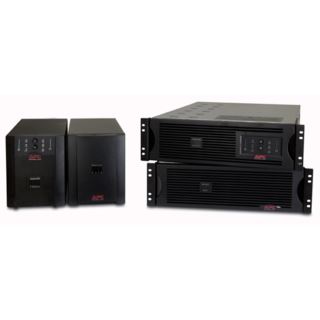

APC Smart-UPS XL 750VA/480W USB & Serial 230V (SUA750XLI)

APC Smart-UPS XL 750VA/480W USB & Serial 230V (SUA750XLI)

Đơn giá (VND): Liên hệ

Mã hàng: SUA750XLI

Thông số kỹ thuật

Output

Output Power Capacity

500 Watts / 750 VA

Max Configurable Power

500 Watts / 750 VA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Topology

Line Interactive

Waveform Type

Sine wave

Output Connections

(6) IEC 320 C13
(2) IEC Jumpers

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

IEC-320-C14 inlet

Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Typical recharge time

3 hour(s)

Replacement Battery

RBC48

RBC™ Quantity

1

Runtime Graph

Hover over the line on the graph above to view the runtime at any desired load

Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency

Load	Efficiency
25%	88.2%
50%	93.6%
75%	95.4%
100%	96.3%

Hover over the line on the graph above to view the efficiency at any desired load

Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Interface Port(s)

DB-9 RS-232, SmartSlot, USB

Available SmartSlot™ Interface Quantity

1

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Emergency Power Off (EPO)

Tùy chọn

Surge Protection and Filtering

Surge energy rating

340 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

157.00 mm

Maximum Width

137.00 mm

Maximum Depth

361.00 mm

Net Weight

13.18 KG

Shipping Weight

14.55 KG

Shipping Height

290.00 mm

Shipping Width

270.00 mm

Shipping Depth

500.00 mm

Master Carton Units

1.00

Color

Black

Units per Pallet

32.00

Environmental

Operating Environment

0 - 40 °C

Operating Relative Humidity

0 - 95%

Operating Elevation

0-3000 meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95%

Storage Elevation

0-15000 meters

Audible noise at 1 meter from surface of unit

40.00 dBA

Online Thermal Dissipation

90.00 BTU/hr

Conformance

Regulatory Approvals

C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, GOST, IEC 60950, VDE

Standard Warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs

PEP

Available in Documentation tab

EOLI

Available in Documentation tab

Other Environmental Compliance

China RoHS
